Load/Source Pull Measurements

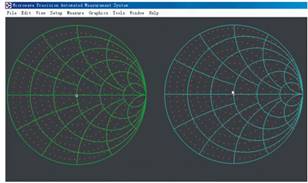

Set DC bias, RF power, frequency and impedance points on the Smith Chart by user defining or as automatically generated
Pie forms including up to 800 points by software, then select measured parameters, make load/source pull measurements,
all data of these parameters as a function of  the above impedances, DC bias, RF power and frequency can be obtained.


                                                   Load/Source Pull Measurements
